| Place of Origin | China |
| Brand Name | Jinze |
| Certification | SGS/ROHS |
| Model Number | DP01S-LBA41-RHA |
LCP DP Displayport Connectors 90 Degree SMT DIP Solder Micro Usb Socket Female Feet 1.4mm
Specifications
| Hosuing | LCP, UL94V-0 |
| Color | Black |
| Contact | C2680, T=0.20mm |
| Shield | C2680, T=0.40mm |
| Cover | LCP, UL 94V-0 |
| Contact Finish | Gold (1u") Plating in Contact Area |
| 80u" Min Tin Plated in Solder Area | |
| 50u" Min. Nickel Underplated Overall | |
| Shield | 50u" Min. Nickel Underplated Overall |
| Current Rating | 0.5A |
| Voltage Rating | 40V |
| Contact Resistance | 40 mΩ Max |
| Insulation Resistance | Unmated: 100mΩ Min at 500 VDC |
| Insulation Resistance | Mated: 10mΩ Min at 150 VDC |
| Dielectric Withstanding Voltage | 500 V AC/1 Minute |
| Durabilty | 10000 Cycles |
| Operation Temperature | -20°C~+85°C |
| Storage Temperature | -20°C~+65°C |

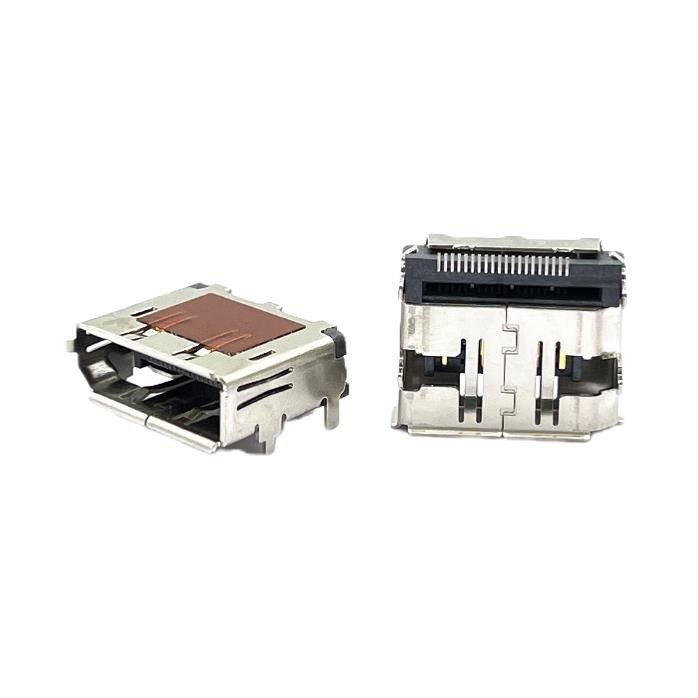

Images:
Drawings:
DP01S-LBA41-RHA.pdf, if you need the Drawing, pls download it!
DisplayPort, or DP for short, is a digital display interface standard primarily used to connect a computer to a monitor. It was developed by the Video Electronics Standards Association (VESA) and was designed as a successor to VGA, DVI, and LVDS. DisplayPort offers several advantages over other display interface standards, including support for high-resolution displays, high refresh rates, and the ability to transmit audio and video over a single cable. DisplayPort is commonly used on computer monitors, graphics cards, and laptops, and is also used in some consumer electronics devices such as TVs and Blu-ray players. DisplayPort comes in different versions, with DisplayPort 2.1 being the most recent and offering the highest bandwidth and support for the latest display technologies.
