| Place of Origin | China |
| Brand Name | Jinze |
| Certification | SGS/ROHS |
| Model Number | DB17A-PLA60-TRA |

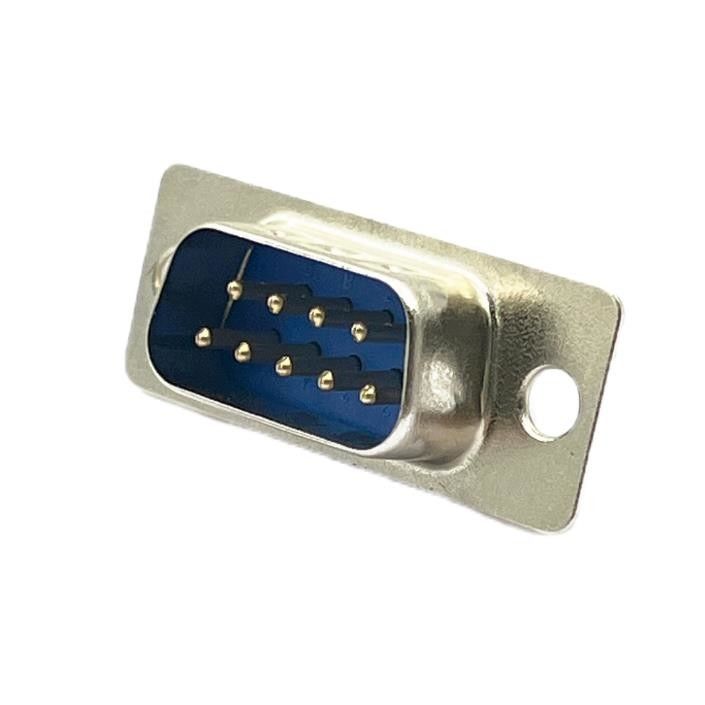

PBT D Sub 9 Connector Solder Male Solder Cup For Cable
1. One-stop Connector Purchase, Complete Specifications, Support OEM Customization
2. Factory Direct Sales, Nissan 1000000, High Shipment Rate, Quality Assurance.
Specifications:
| Current Rating | 1.0 AM |
| Contact Resistance | 25mΩ Max |
| Dielectric Withstanding Voltage | AC 1000V r.m.s For 1 Minute |
| Insulation Resistance | 5000mΩ Min |
| Operation Temperature | -55℃ to +105℃ |
| Contact Material | Brass |
| Housing Material | PBT+30% GF UL94V-0 |
| Spacer Material | PBT+30% GF UL94V-0 |
| Shell Material |
SPCC |
| BoardLock Material | SPCC, Bright Tin Plated |
| Rivet Material | Brass |
| Contact Area Plating | Gold Flash Plated |
| Solder Tail Plating | 80u" Min Tin Plated |
| Screws | Steel, Nickel Plated |
DB17A-PLA60-TRA.pdf, if you need the Drawing, pls download it
What a D-Sub?
D-Sub, also known as D-subminiature, is a type of electrical connector commonly used in computer and video applications. It gets its name from its "D" shape, which is formed by the metal shield that surrounds the pins.
D-Sub connectors come in a variety of sizes, ranging from 9 pins to 50 pins. They are commonly used for connecting devices such as monitors, printers, and serial ports to a computer. Some common types of D-Sub connectors include DB9, DB15, and DB25.
D-Sub connectors are known for their durability and reliability, and are often preferred in industrial applications due to their ability to withstand harsh environments. They are also relatively easy to install and use, making them a popular choice for DIY projects.
